Brand Name : XCMG
Model Number : XD120S
Certification : IOS/CE
Place of Origin : Jiangsu, China (Mainland)
MOQ : 1
Price : Call for price
Payment Terms : T/T
Delivery Time : 7-15days
Packaging Details : Container or Shipped by Ro-Ro or Bulk shipment
| Model: Road Roller | Condition: Brand New | Application: Construction |
| Brand Name: XCMG | Model Number: XD120S | Certification: ISO, CE |
| Operating Weight: 2850kgs | Drum width: 1200mm | Dimension: 2610×1286×2575mm |
| Working speed(F/R): 0-10km//h | Theoretical gradability: 30% | Place of Origin: Jiangsu, China (Mainland) |
| Warranty: 1 year | Engine Model: D1703 | After-sales Service Provided: Engineers available to service machinery overseas |
| Item | Content | Unit | XD120VT |
| Weights | Operating weight | kg | 2850 |
| Maximum operating weight | kg | 3450 | |
| Front axle weight | kg | 1350 | |
| Rear axle weight | kg | 1500 | |
| Static linear load | N/cm | 110/122 | |
| Maneuverability | Operating speed | km/h | 0-10 |
| Gradeability | % | 30 | |
| Minimum turning radius (outer) | mm | 3700 | |
| Minimum ground clearance | mm | 275 | |
| Wheel base | mm | 1773 | |
| Steering angle | ° | ±32 | |
| Oscillation angle | ° | ±8 | |
| Compaction parameters | Vibration frequency | Hz | 63/67 |
| Nominal amplitude | mm | 0.5 | |
| Excitation force | kN | 36/41 | |
| Drum diameter | mm | 720 | |
| Drum width | mm | 1200 | |
| Engine | Model | D1703 | |
| Emission | EU Stage IIIA | ||
| Rated power | KW | 25.6 | |
| Rated speed | r/min | 2600 | |
| Capacities | Fuel tank | L | 35 |
| Water tank | L | 165+45 |

|
|

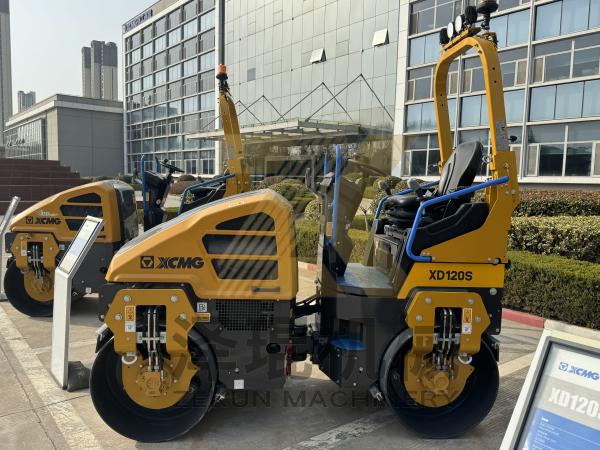

vibratory 2.8 Ton XCMG XD120S road roller equipment Lightweight Images |
